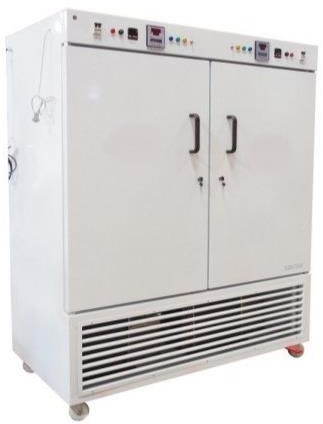

Seed Germinator – Double  Chamber / Double  Door

Applications

•  Double chamber, automatic, with lighting arrangement.
•  Germinators are useful for seed testing, biological studies, forestry       research works etc.
•  Excellent quality magnetic gum packing door gasket for external door.
•  User oriented design of shelves makes you adjust each space of shelves without difficulty.
•  Forced air circulation by durable blower, maintains optimum temperature uniformity and homogeneity.
• Glass wool Insulation between outer and inner chamber for minimal thermal losses.
• Caster wheel mounted for easy portability.
• Front double walled door is provided with lock and key arrangement.

Technical Specifications

• No. of Chamber :  Two
• Capacity             : Each Chamber 10 x2 CFT  ( 280 + 280 Liters)
• Size Each Chamber : 56x56x86 Cm ( WxDxH)
• Inside Chamber :  Stainless Steel
• No. of Trays :       6  Adjustable SS perforated trays
• Outside Chamber :M.S Sheet Powder Coated
• Temperature :       10⁰C - 50⁰C + 1⁰C
• Humidity approx. 90-95 percent
• Display :      32 character alphanumeric LCD Display
• Light :                   LED lights for lighting
• Compressor :        Hermetically sealed type of standard make
•  Evaporator :         Finned Tubes  facilitates uniform and faster cooling                                  effects.
•  Backup:                 Data Logging Facility to record 1000 readings.
•   Programming :   User friendly programming for temperature, humidity                                 and light levels with time steps
•  Operating Voltage : 220V, 50Hz AC
•  Control Panel:      Control Panel is given at the top of chamber having                                      ON-OFF switch three indicators for main cooling and                                   heating , temp. setting knob

Features of Micro Controller

• 16 x 2 line alphanumeric LCD display with backlit.
• Membrane keypad with tactile feedback
•  Data (Temp., Humidity and light levels) storage upto 1000 readings
• Real Time Clock
• Watchdog Timer
• Audio / Visual Timer for temperature humidity deviations from set values
• Temperature Sensor : PT 100
• Humidity Sensor : Capacitive
• Five Levels Light Control
• Software Calibration
• Program lock to avoid any changes in control parameters by unauthorized
•  Programmable time intervals for temp., humidity & light level control.
• Temperature : Range : 0 -50⁰C, Resolution : 0.1⁰ C
•  Humidity : Range : 0-100% RH, Resolution : 1% RH
•  Light Levels : 0%, 25%, 50%, 75%, 100%
•  Data Storage : Programmable time interval 0-99 Minutes
• 1000 readings of Temperature, Humidity and Light Levels
•  Operating Voltage  :  220V AC +10%, 50 hz
